Showing all 9 results

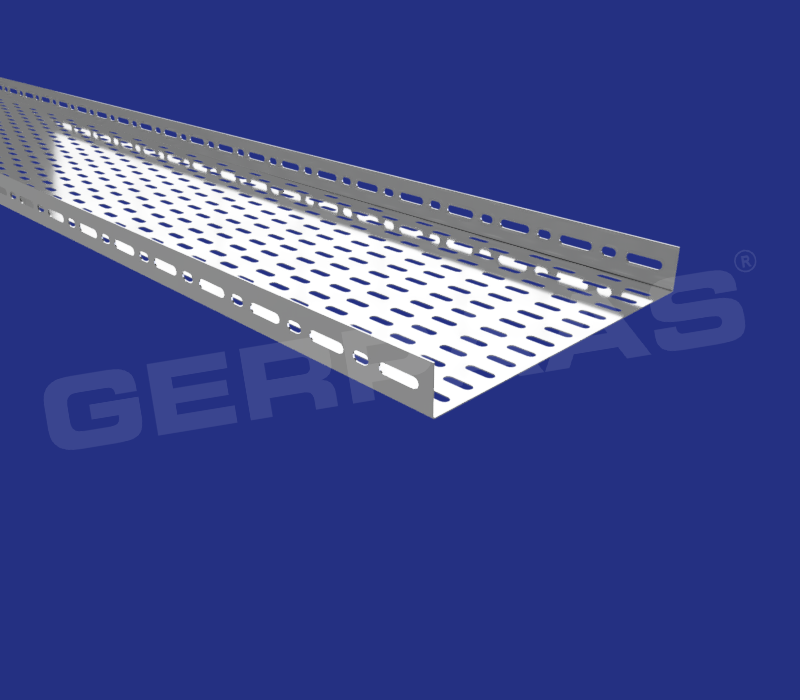

Cable Trays, Light Duty GE- KT1 Series

Part No GE-KT1
Thickness min:0,8 maks: 2,5 mm
Width min:50 maks: 900 mm
Height min:15 maks: 40 mm
Length 3000 mm max.
Metarial & amp S4-S6-HG-PG-EG-EB-AL
Use Electromechanical Installations
Standarts EN61537

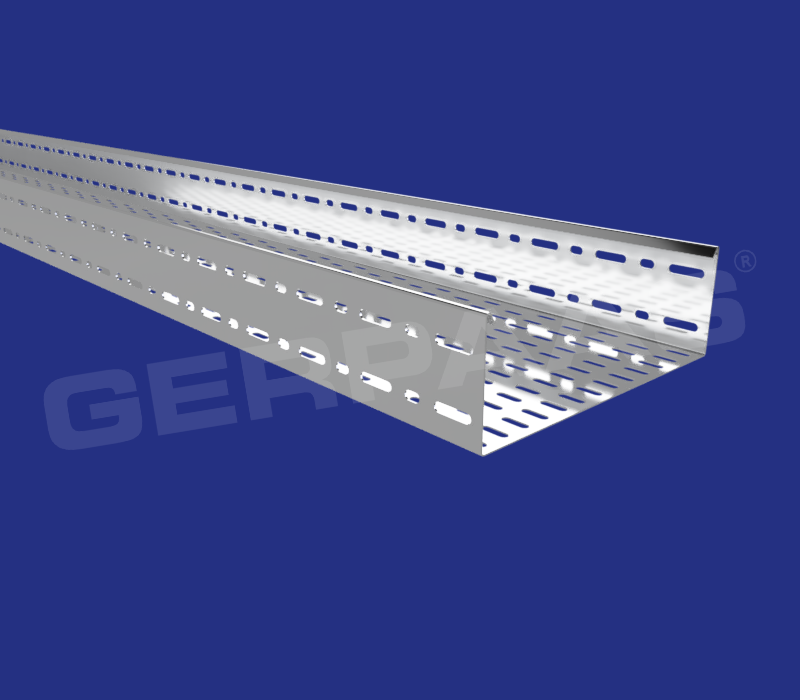

Cable Trays, Heavy Duty GE-KT2 Series

Part No GE-KT2
Thickness min:0,8 max: 2,5 mm
Width min:50 max: 900 mm
Height min:50 max: 200 mm
Length 3000 mm max.
Metarial & amp S4-S6-HG-PG-EG-EB-AL
Use Electromecnical Installations
Standarts EN61537

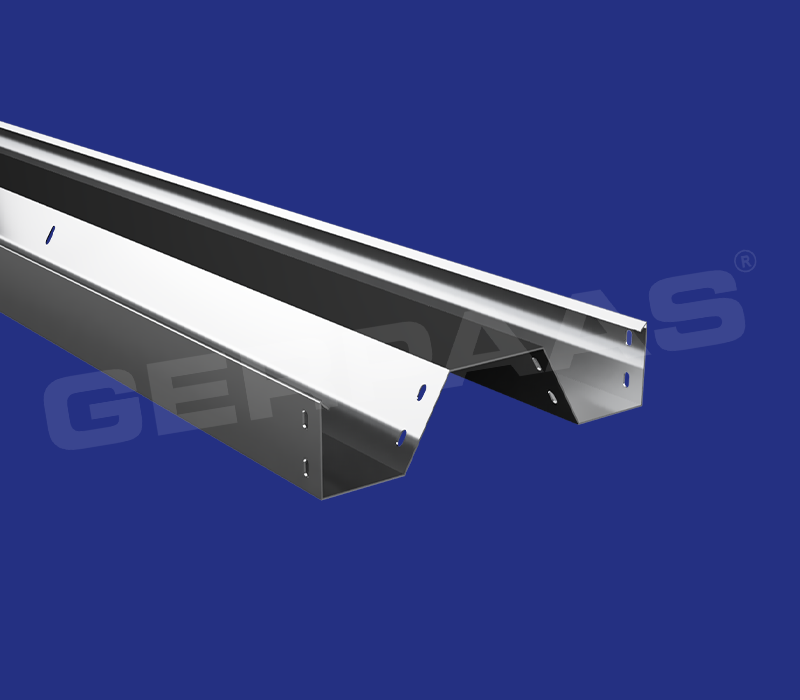

Omega Cable Trays GE-KT2-M Series

Part No GE-KT2-M
Thickness min:0,8 max: 2,5 mm
Width min:50 max: 600 mm
Height min:40 max: 100 mm
Length 3000 mm
Metarial & amp S4-S6-HG-PG-EG-EB-AL
Use Electromechanical Installations
Standarts EN61537

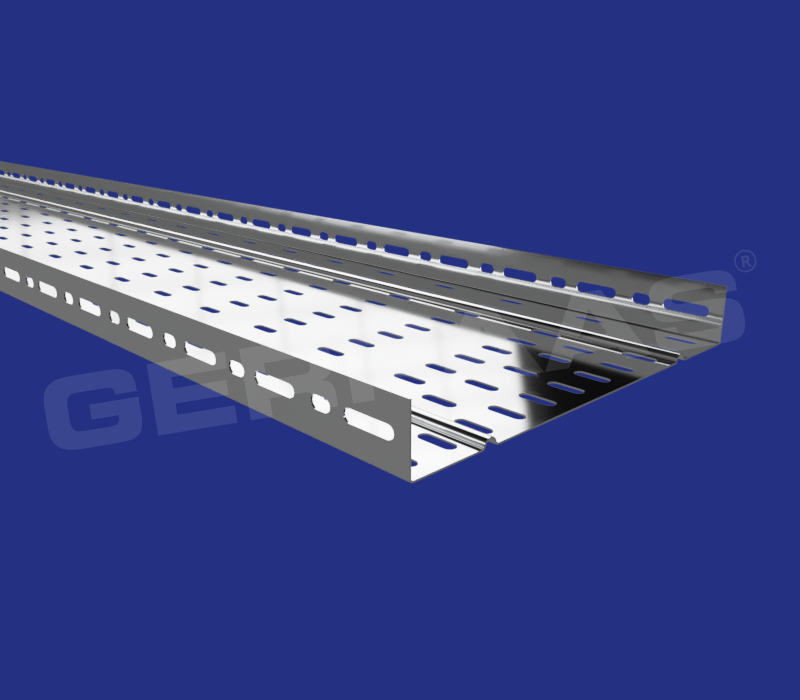

Reinforced Type Cable Trays, Light Duty GE-KT3 Series

Part No GE-KT3
Thickness min:0,8 max: 2 mm
Width min:50 max: 900 mm
Height min:40 max: 40 mm
Length 3000 mm max.
Metarial & amp S4-S6-HG-PG-EG-EB-AL
Use Electromecnical Installations
Standarts EN61537

Reinforced Type Cable Trays, Heavy Duty GE-KT4 Series

Part No GE-KT4
Thickness min:0,8 max: 2 mm
Width min:50 max: 900 mm
Height min:60 max: 60 mm
Length 3000 mm max.
Metarial & amp S4-S6-HG-PG-EG-EB-AL
Use Electromecnical Installations
Standarts EN61537

Cable Trays With Clamping Lid GE-KT5 Series

Part No GE-KT5
Thickness min:0,8 max: 2,5 mm
Width min:50 max: 900 mm
Height min:50-75 max: 100 mm
Length 3000 mm max.
Metarial & amp S4-S6-HG-PG-EG-EB-AL
Use Electromecnical Installations
Standarts EN61537

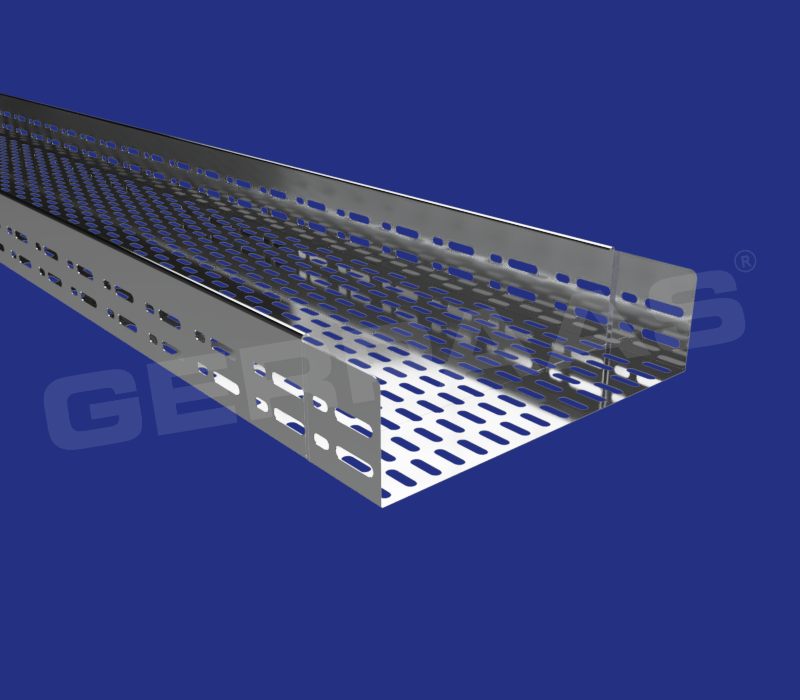

Cable Trays Without Couplers GE-KT6 Series

Part No GE-KT6
Thickness min:0,8 max: 2,5 mm
Width min:50 max: 900 mm
Height min:50 max: 200 mm
Length 3000 mm max.
Metarial & amp S4-S6-HG-PG-EG-EB-AL
Use Electromecnical Installations
Standarts EN61537

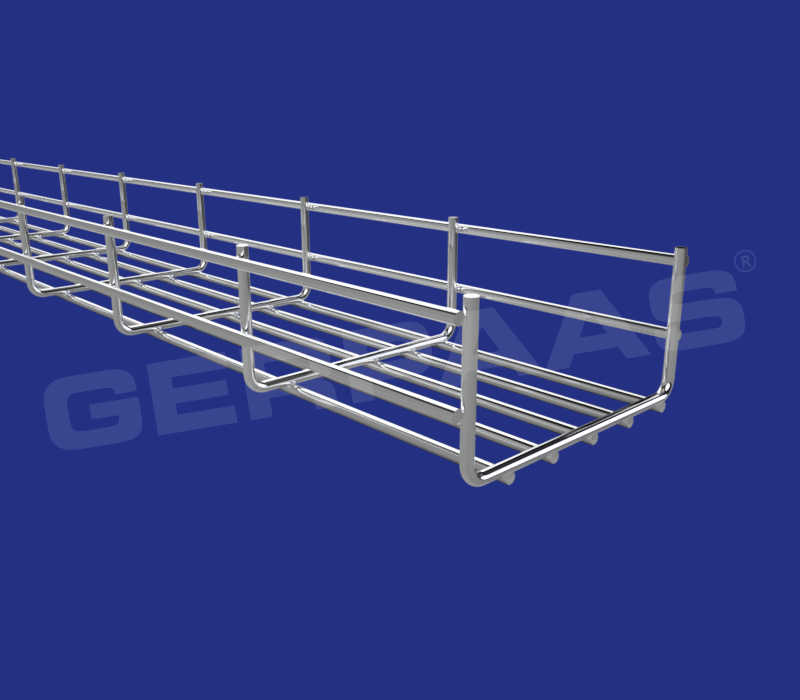

Wire Mesh Cable Tray GE-TLK Series

Part No GE-TLK
Thickness min:4 max: 8 mm
Width min:50 max: 600 mm
Height min:50-85 max: 120 mm
Length 3000 mm max.
Metarial & amp S4-S6-HG-PG-EG-EB-AL
Use Electromecnical Installations
Standarts EN61537

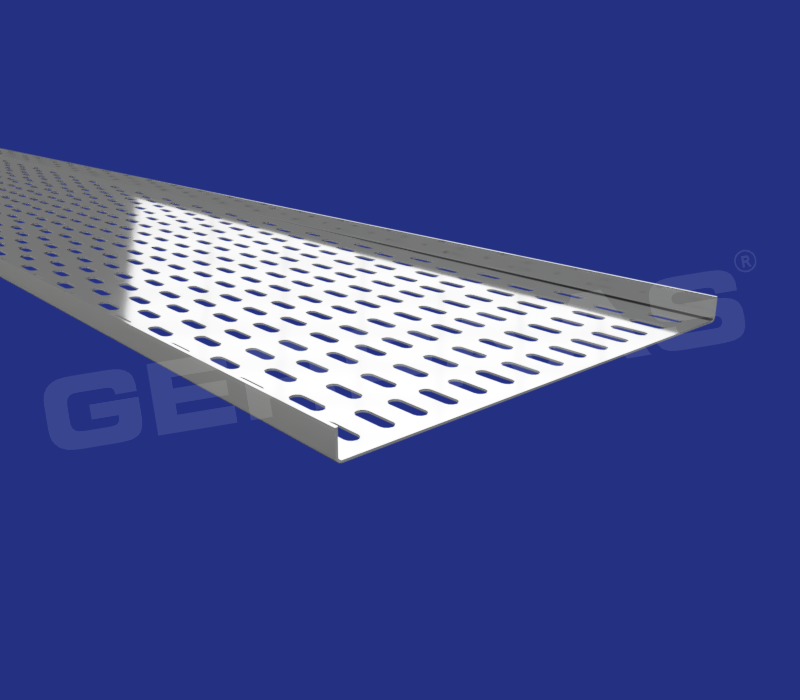

Marine Type Cable Tray GE-KTG Series

Part No GE-KTG
Thickness min:0,8 max: 2,5 mm
Width min:70 max: 600 mm
Height min:15 max: 600 mm
Length 3000 mm max.
Metarial & amp S4-S6-HG-PG-EG-EB-AL
Use Electromechanical Installations
Standarts EN61537

Cable Trays
GERPAAS cable trays are manufactured in accordance with the EN 61537 standard. Material & finish options offered in standard are hot dip galvanized, pregalvanized, stainless steel (AISI 304 & 316), aluminum, epoxy paint coating. All products are quality certified and offered with product warranties.

PDF Icon GERPAAS CABLE TRAYS CATALOGUE.PDF
PDF Icon GERPAAS WIRE MESH CABLE TRAYS CATALOGUE.PDF
PDF Icon GERPAAS MARINE SYSTEMS CATALOGUE.PDF
PDF Icon GERPAAS GE-KT6 BROCHURE.PDF
