Showing all 9 results

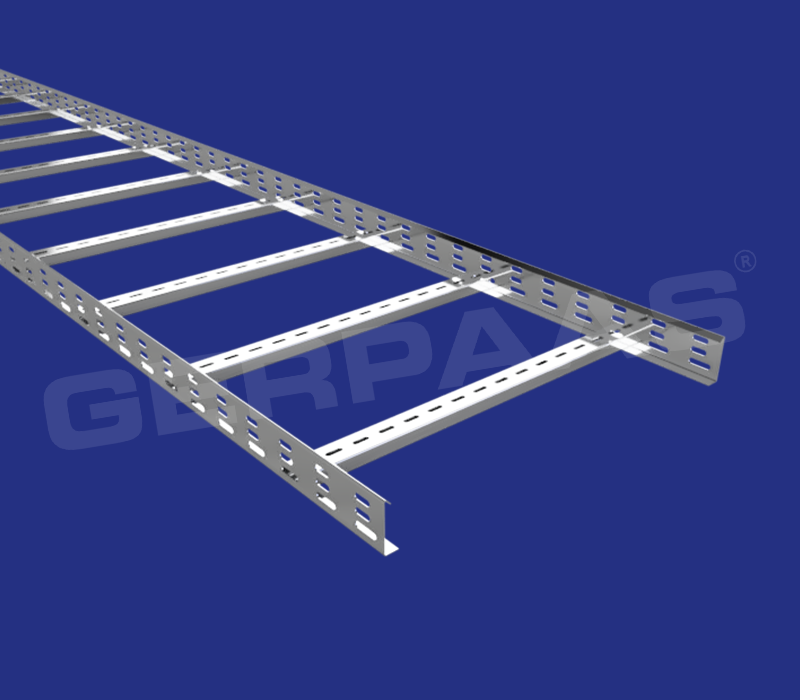

Cable Ladders, Light Duty GE-MC1 Series

Part No GE-MC1
Thickness min: 1,2 max: 2 mm
Width min: 100 max: 900 mm
Height min: 40 max: 80 mm
Length 3000 mm
Metarial & amp S4-S6-HG-PG-EG-EB-AL
Use Electromechanical installations
Standarts EN61537

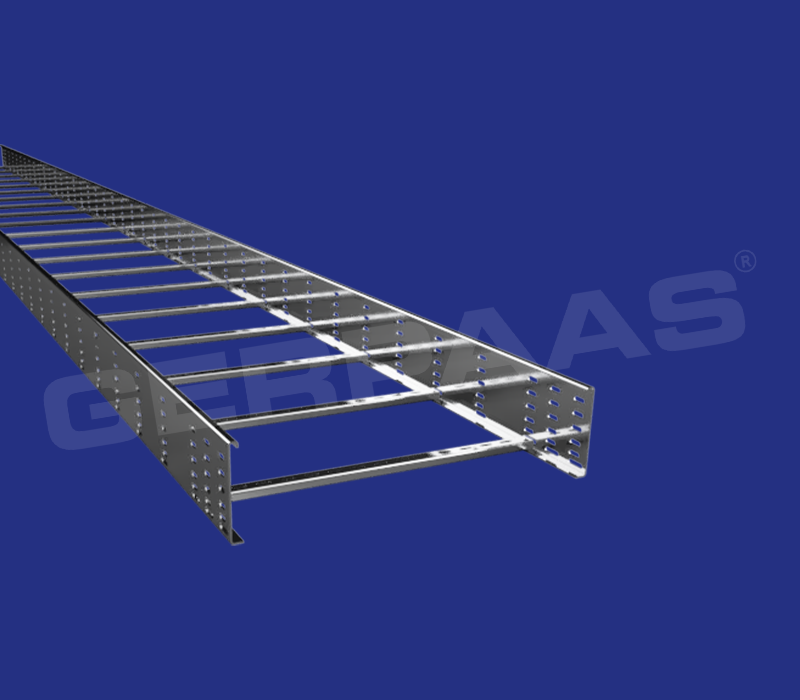

Cable Ladders, Heavy Duty GE-MC2 Series

Part No GE-MC2
Thickness min:1,5 max: 2,5 mm
Width min:100 max: 1000 mm
Height min:100 max: 250 mm
Length 3000 mm / 6000 mm
Metarial & amp S4-S6-HG-PG-EG-EB-AL
Use Electromechanical Installations, Heavy Duty
Standarts EN61537

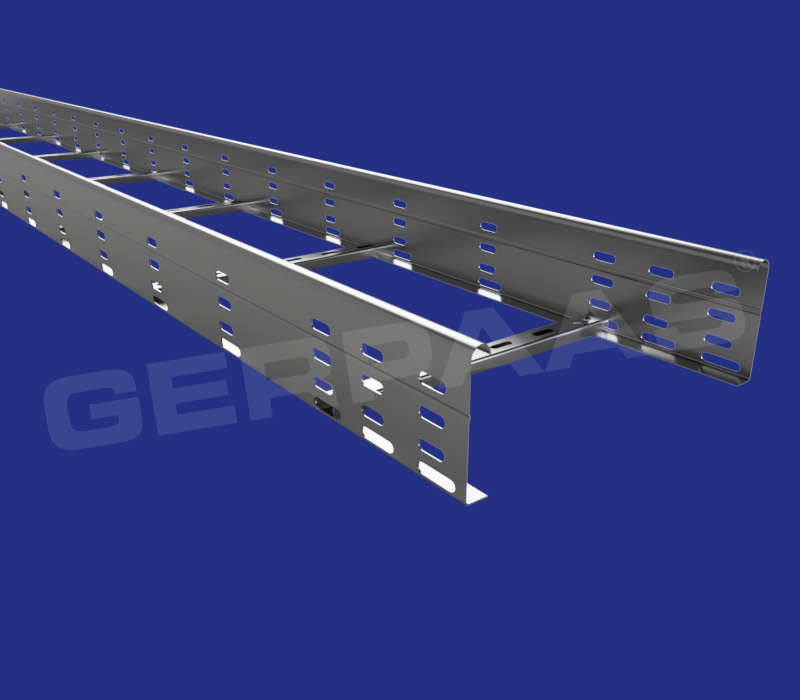

Cable Ladders, Heavy Duty GE-MC2-E Series

GE-MC2-E
min:1,5 max: 2,5 mm
min:100 max: 900 mm
min:100 max: 150 mm
3000 mm / 6000 mm
S4-S6-HG-PG-EG-EB-AL
Electromechanical Installations, Heavy Duty
EN61537

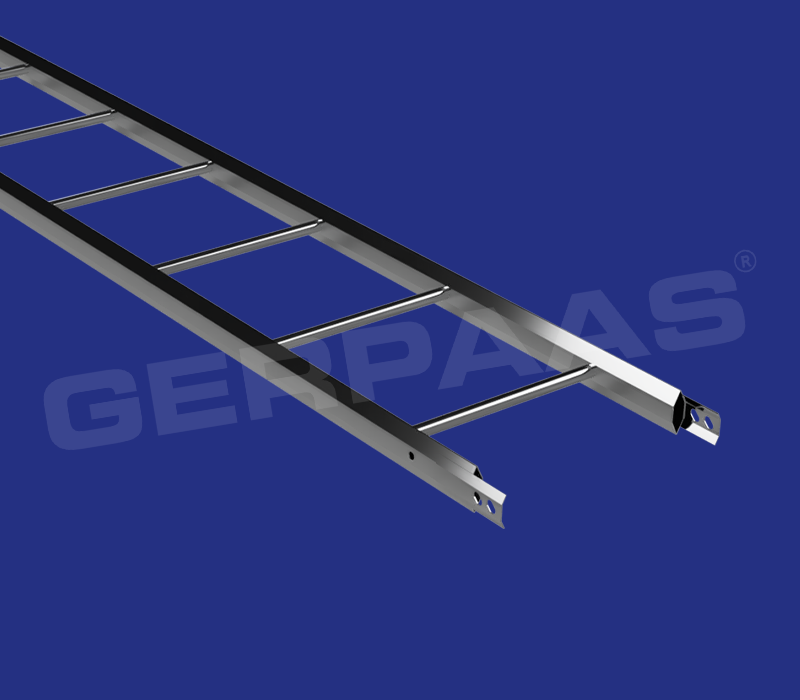

Hexagonal Cable Ladders GE-MC2-V Series

GE-MG4
min:1,2 max: 2 mm
min:100 max: 900 mm
min:40 max: 100 mm
3000 mm / 6000 mm
S4-S6-HG-PG-EG-EB-AL
Electromechanical Installations
EN61537

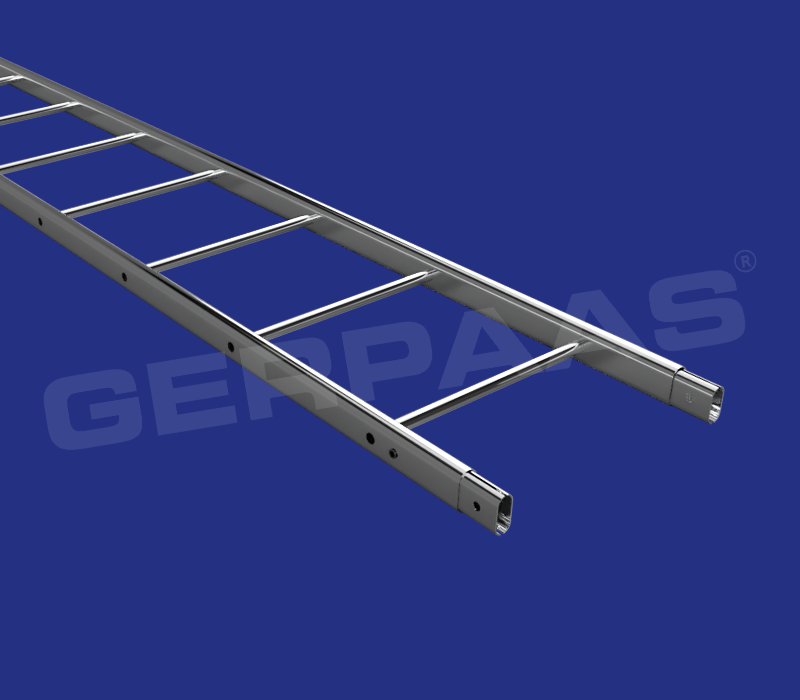

Pipe Type Cable Ladder GE-MC2-P Series

GE-MG4
min:1 max: 2 mm
min:100 max: 900 mm
min:40 max: 100 mm
3000 mm / 6000 mm
S4-S6-HG-PG-EG-EB-AL
Electromechanical Installations, Heavy Duty
EN61537-NEMAVE-1

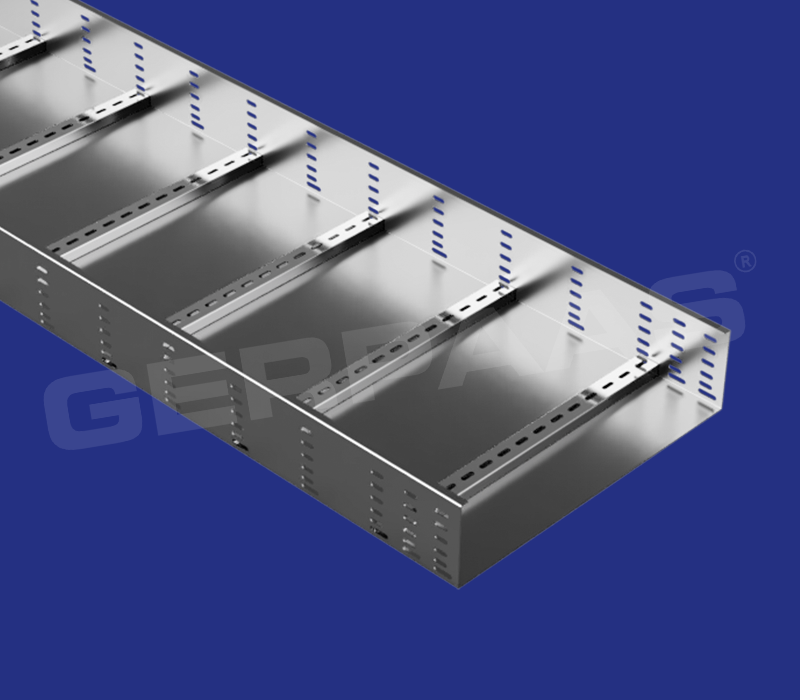

Cable Ladders, Duct Type, Solid Bottom GE-MC2-DC Series

GE-MC2 DC
min:1,5 max: 4 mm
min:100 max: 1000 mm
min:100 max: 600 mm
3000 mm / 6000 mm
S4-S6-HG-PG-EG-EB-AL
Electromechanical Installations, Heavy Duty
EN61537

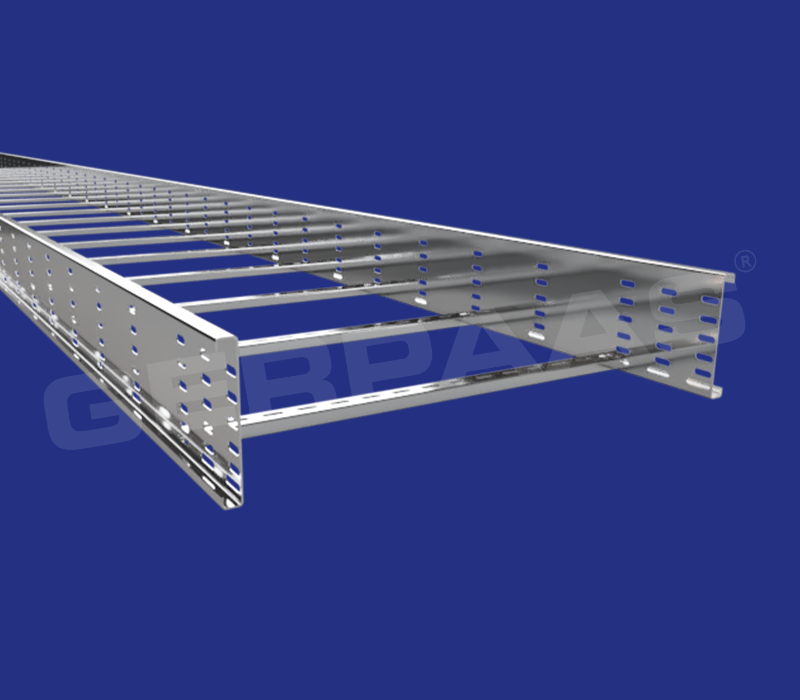

Cable Ladders, Out Flanged Type GE-MX Series

GE-MX
min:1,5 max: 3 mm
min:100 max: 1000 mm
min:100 max: 200 mm
3000 mm / 6000 mm
S4-S6-HG-PG-EG-EB-AL
Electromechanical Installations, Heavy Duty
EN61537

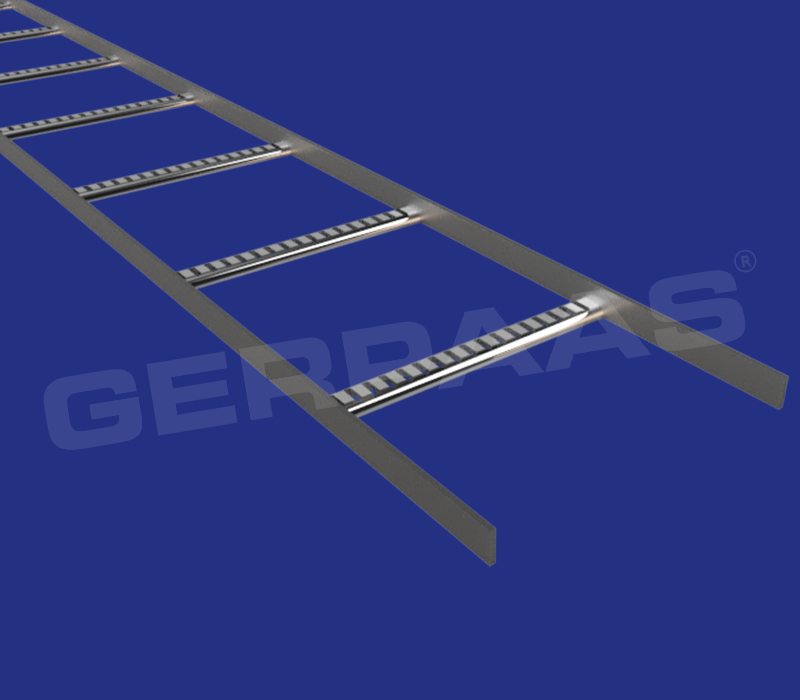

Cable Ladders, With U Rung GE-MG1 Series

GE-MG1
min:1,5 max: 5 mm
min:300 max: 600 mm
min:30 max: 60 mm
3000 mm
S4-S6-HG-PG-EG-EB-AL
Electromechanical Installations
EN61537

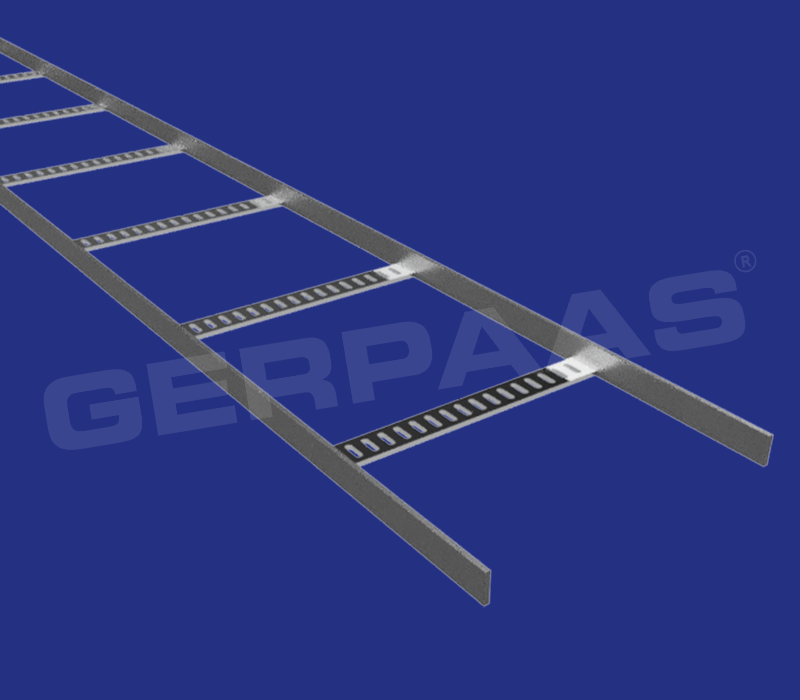

Cable Ladders, With Flat Rung GE-MG2 Series

GE-MG2
min:1,5 max: 5 mm
min:100 max: 600 mm
min:30 max: 60 mm
3000 mm
S4-S6-HG-PG-EG-EB-AL
Electromechanical Installations
EN61537

Cable Ladders, With V Rung GE-MG3 Series

GE-MG3
min:1,5 max: 5 mm
min:100 max: 600 mm
min:40 max: 60 mm
3000 mm
S4-S6-HG-PG-EG-EB-AL
Electromechanical Installations
EN61537

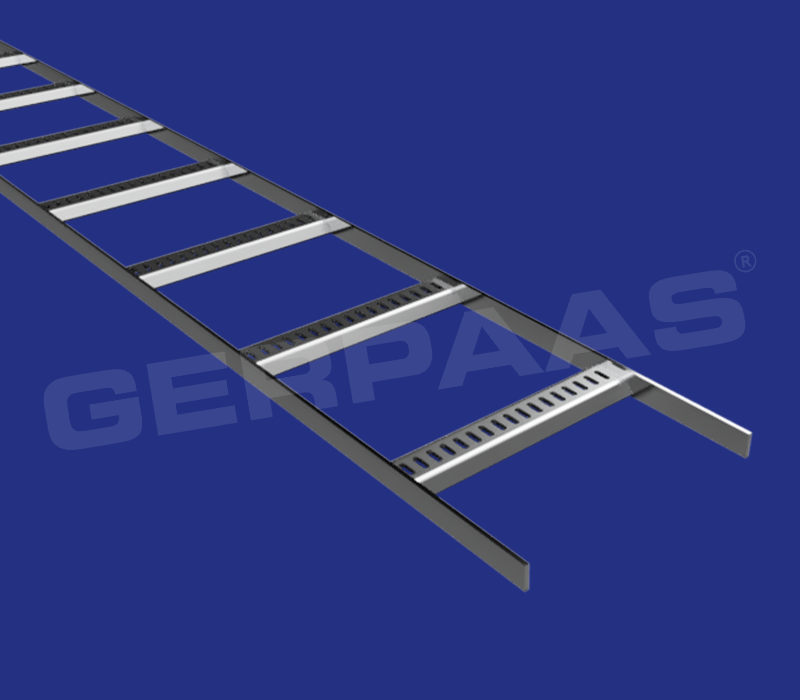

Cable Ladders, With Z Rung GE-MG4 Series

GE-MG4
min:0,8 max: 2,5 mm
min:100 max: 600 mm
min:40 max: 60 mm
3000 mm
S4-S6-HG-PG-EG-EB-AL
Electromechanical Installations
EN61537

Cable Ladders
GERPAAS cable ladders are manufactured in accordance with the EN 61537 standard. Material & finish options offered in standard are hot dip galvanized, electro galvanized, stainless steel (AISI 304 & 316), aluminum, epoxy paint coating. All products are quality certified and offered with product warranties.

PDF Icon GERPAAS CABLE LADDERS CATALOGUE.PDF
PDF Icon GERPAAS MARINE SYSTEMS CATALOGUE.PDF
